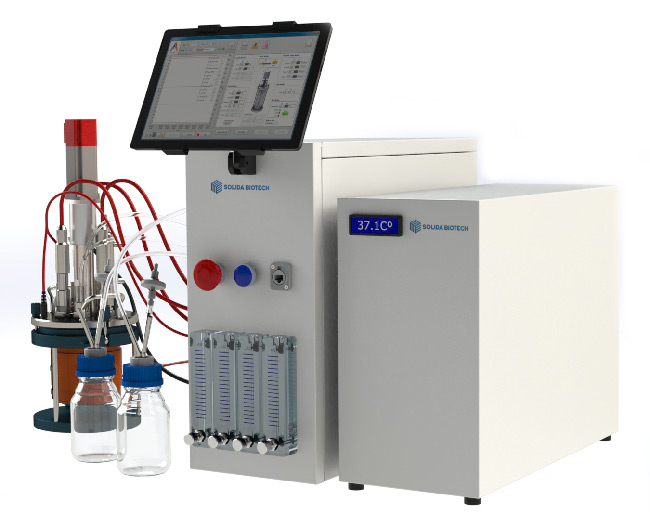

BIO-BOOK Compact Bioreactors for fermentation and cell cultivation

Our Compact Bioreactors is a flexible entry-level bioreactor system that let you save valuable space. Vessels volume are from 75ml to 75l.

Overview

Solida Biotech Next-Generation Bioreactors provides our customers with superior reliability, efficiency and high-value returns operators require in today’s competitive market.

BIO-BOOK Compact Bioreactors is a line of latest generation bioreactors that can be used for educational applications, but also for advanced bioprocessing and development. Applications include cell culture, stem cells, fermentation of bacteria, fungus, yeasts, photo-sensitive organisms such as plants, algae and more.

Powerful PLC Controller, Advanced SCADA Software, 4 built-in controlled speed peristals pumps, automated Gas mixing for microbial fermentation and cell cultivation, Digital and Analog interface for many sensors pH, Dissolved Oxygen, Temperature, Level, Foam, Mass Balance and online analyzers such as Biomass, Gas Analyser, Glucose Analyser and more.

One Biocontroller for Glass and Single use vessels starting at 100mL w/v to 50L capacity.
Parallel controller and Software capabilites up to 12 bioreactors systems to accelerate the development of your bioprocesses.

Lab Efficiency

Small footprint Bioreactor occupying a truly reduced surface of 280x400mm WxD or 100×400 inches (US) to meet the limitations of space in many laboratories.

More flexibility with Glass and Single-Use vessel

The BIO-BOOK Compact controller allows you to intercheange glass and single use vessels with related adapters. Available vessel capacity as follow;
Autoclavable vessels: 300 mL, 500 mL, 1-2-3-5-7-10-15-20 Litres
SUB Disposable vessels: 3-10-20-30-50 Litres
Integration of commercially available SUB’s: Merk-Millipore, Eppendorf, Sartorius, Cercell
Use of autoclavable and disposable pH / DO sensors

Rich Connectivity

The BIO-BOOK Compact bioreactor is based on a real-time embedded industrial controller with a combination of many real-time monitorable parameters like sensors and actuators, reconfigurable and expandable IO Modules to increase the controller capabilites and an Ethernet expansion chassis to to communicate with many devices like PC workstation’s, Laptop and modern portable devices for remote access via password protection.

Intelligent HMI-PC Interface with onboard SCADA Software BIOFLEX TM

HMI-PC interface large colored screen 14″ size with the license free Scada Software BIOFLEX allows you to fully monitor, control and supervise your bioprocess without the need to purchase additional devices or software for data processing.

Key Advantages

Compact design, small footprint WxD 280x400mm or 100×400 inches (US)
Suitable for glass and single use vessel
Great accuracy and reliability with adaptive P.I.D. control
Integrated Data Management and Data Acquisition Software
Touch panel PC or conventional PC workstation
Integrated heating and cooling system with the Solida BIO-CHILLER
Real-time industrial controller, reconfigurable IO Modules, Ethernet expansion
Simplicity of installation, programming and maintenance
SensorFlash® non-volatile memory to save your bioprocess data
Certified for GLP and GMP classified environments
Sales and service available worldwide

BIOFLEX™ SOFTWARE

The entire bioreactor system is driven by BIOFLEX™ software, with an intelligent interface that is easily accessible, accessible for beginners to experienced users. Thanks to the intuitive user interface, Bioflex is simple to operate, with reduced operator errors and reduced training needs.

BIO-FLEX™ is a bioprocess software designed for R&D, process development, optimization and scale up to industrialization.

Bioflex is high flexibility for a batch, feed batch or a continuous culture with Advanced control strategies (pH STAT, DO STAT, Turbido-stat, exponential, complex calculations), perfusion programs, off line data and profiles management, data batch records, data export to excel and more.

This open source Software allows to integrate, at any time, conventional and sofisticated online sensors such as Biomass Monitor, Gas analysers, pCO2 probe, Glucose and Multi-assay analyzers and actuators (pumps, MFC or Rotameters, valves, etc.).

Bioflex software support the latest Windows released platforms and can be installed on a Laptop, PC Workstations, tablet or smartphone, and enables you to monitor and control your bioreactor at any time: in the laboratory, in the office or even at home.
