Infratec™ 1241 Grain Analyser

The 3rd generation Infratec™ 1241 is the world’s most widely used grain analyser. Based on 60 years of experience, Infratec™ is recognised by the global grain industry as the trusted method for grain analysis.

Infratec™ 1241 Grain Analyser

Overview

Value

The global standard in grain analysis with a calibration database covering more than 20 years of harvest. Reliable even in a harsh environment.

Sample Type

Barley, wheat, corn and other cereals, oilseeds, beans and pulses.

Parameters

Moisture, protein, oil, test weight, starch, wet gluten, fibre, ash and many more.

Features

ANN calibrations
ANN calibrations

The huge Infratec™ database comprises over 50.000 cross checked samples, PLS and robust ANN-based calibrations building on a wide sample range from many years of harvests. This gives a level of accuracy and stability that enables Infratec™ to test even the most unusual samples anywhere in the world.

FossConnect™
FossConnect™

FossConnect™ is a centralised networking management solution for Infratec™ that helps you reduce your production costs and secure the quality of your products. With FossConnect™, you can manage, configure and monitor your instruments remotely from any internet-enabled computer and safeguard your data for whenever you need it.

Established standard worldwide
Established standard worldwide

Infratec™ is officially approved and established worldwide as the standard for determining protein, moisture, oil and starch. Its accurate and reliable results help you to deliver consistent quality. With Infratec’s patented stabilising technique, you get correct results whatever the weather. For instance, protein is predictable to within 0,1% and it can be measured in temperatures ranging from -4°C to +40 °C.

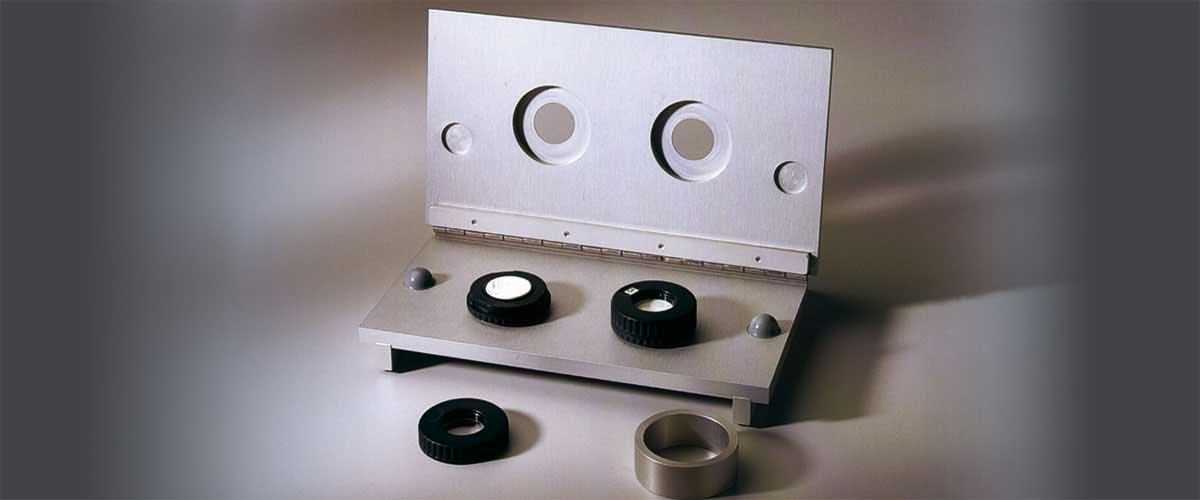

Expand capabilities with additional modules
Expand capabilities with additional modules

The Infratec™ 1241 is part of a modular system that includes a Flour module, a Test Weight module and a Sample Transport module to test small samples, wet samples and liquids.

Technical Specifications

Feature Specification
Dimensions (W x D x H) 500 × 570 × 400 mm
Weight 30 kg
Voltage 220-240V 50-60Hz or 110-120V
Rated current 1.0A (110-120V) / 0.5A (220-240V)
Spectrometer Scanning monochromator
Wavelength range 570 – 1100 nm
Detector Silicon
Optical bandwidth 7 nm
Number of data points/scan 265
Mode Transmittance
Light source Tungsten halogen lamp
Detector Silicon
Storage Media Flash disk, USB memory stick
Display 640 × 480 TFT LCD
Sample handling and result presentation
Analysis time 50 seconds for 10 sub-samples
Path length Variable cell automatically controlled from 6 – 33 mm
Result report Presented on the display as default. Can be sent to PC/LIMS and the printer port
Outlier function Warnings and options for the presentation of the result
Software Menu driven
Regression programs ANN (Artificial Neural Network); PLS (Partial Least Squares)
No. of sub-samples 1 – 20
Operation Data
Software Menu driven
Regression programs ANN (Artificial Neural Network); PLS (Partial Least Squares)
No. of sub-samples 1 – 20
PATENTED METHOD – US PATENTS; US 4,944,589 AND EUROPEAN PATENTS; EP 0 320 477 B1, 8704886-4.
Optional Modules
• Flour Module
• Test Weight Module
• Sample Transport Module
Support Software
• Infratec™ File Tool, 1241
• WinISI™ 4, Calibration Development Software
• Infratec™ Scan Predictor
• Infratec™ DataLogger (included with instrument)
• FOSS DataLink
• MOSAIC internet network softwareFor support and administration of Infratec systems operated in networks, contact FOSS Analytical for further information.
Interface
Printer: 25 pin parallel port
Modem: 9 pin serial port
External PC: 9 pin serial port
LAN: RJ45
Keyboard/Barcode: PS/2
USB Ports: 2 pcs
Remote I/O: 15-pin High Density DSUB
Diagnostics: Self tests for internal communication,
monochromator and detector (offset,
gain and noise)
System protection: Dust and humidity protected
