Hydrotec™ 8000
The Hydrotec™ 8000 is ideal for the busy laboratory requiring high throughput of samples. It is an innovative fully automated system that performs automated acid hydrolysis without sample transfer. It has a small footprint and unique batch-handling features.
Overview
Value
Fully automated acid hydrolysis system. Patented HydroCap™ – single use filter system. Reduced foot print and batch handling of 12 samples.
Sample Type
Feed, Feed ingredients, Forage, Pet food, Food, Food ingredients, Grain, Cereal, Meat, Meat products, Fish, Fish products and Dairy products.
Parameters
Total Fat
Features

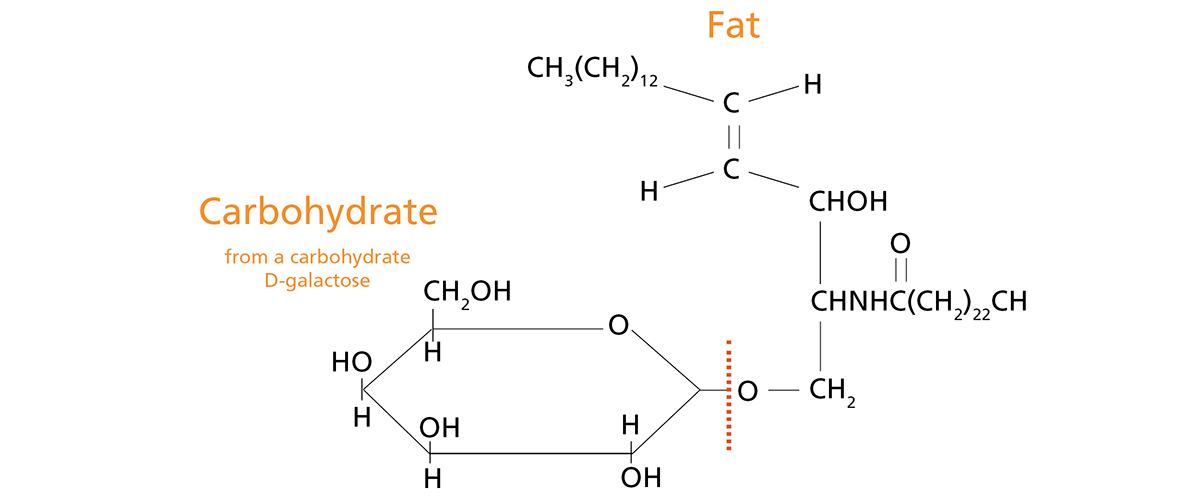

Acid hydrolysis
In some cases the fat is chemically or mechanically bound to e.g. carbohydrates, salts or proteins. Acid hydrolysis breaks these bonds – making it possible to extract the fat.
Accessories

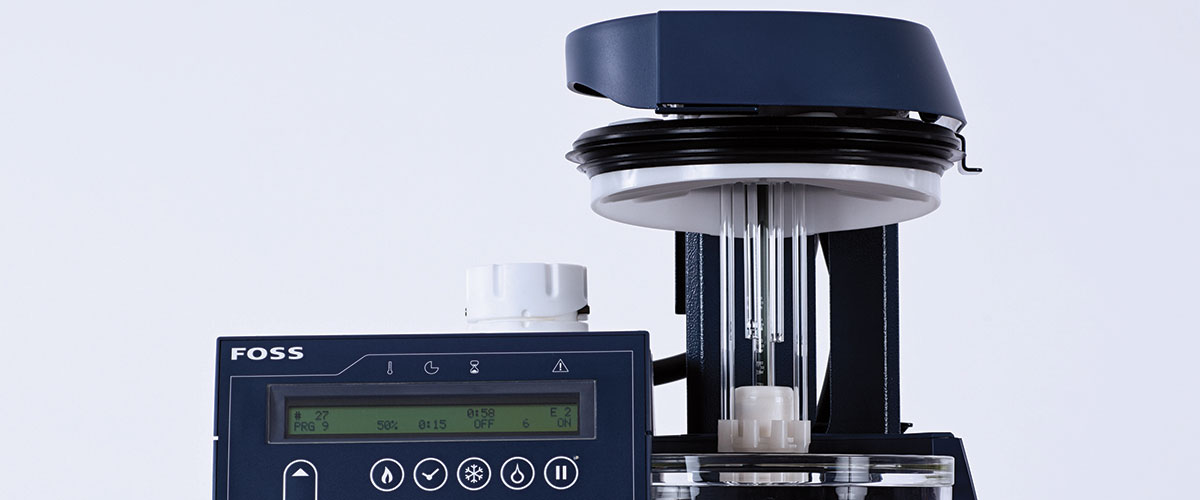

Chemicals are added and removed by pump, improving safety and reducing the risk of human error, Water rinse is performed automatically, The system is closed and releases no fumes

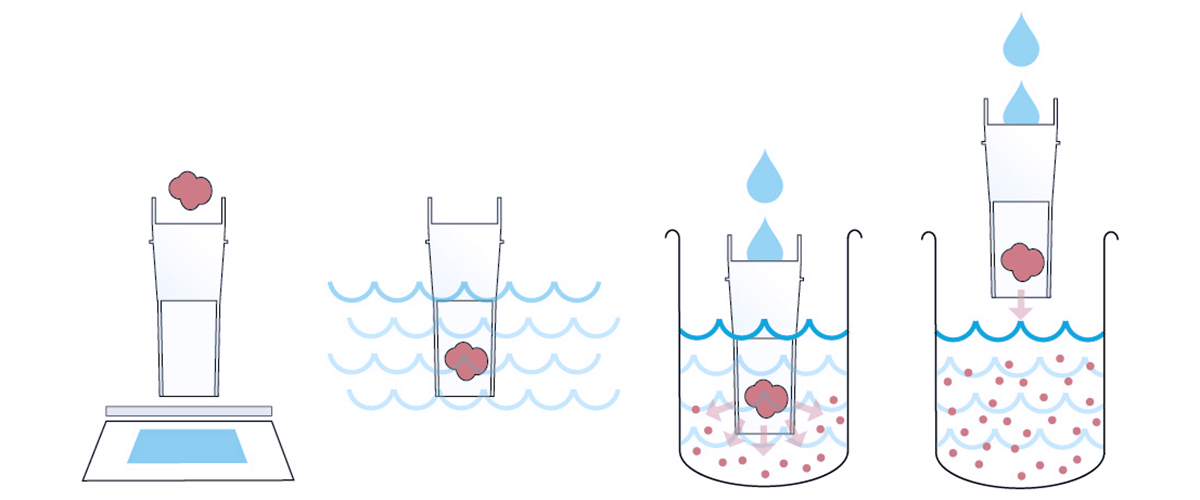

Simplified process
This unique patented Hydrocap™ filter contains the sample from the initial weighing, through hydrolysis to final extraction; avoiding sample transfer errors. It is a fully automated system that performs automated acid hydrolysis and Randall improved Soxhlet extraction in one integrated process.

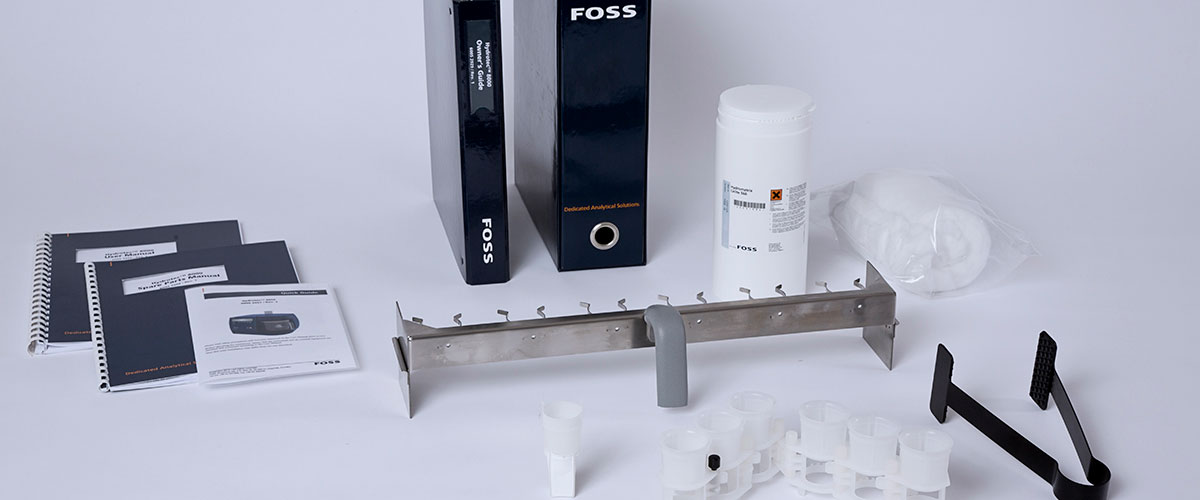

Batch Handling Tools
Batch handling, with no sample transfer, is used throughout the procedure. Boiling, rinsing and filtration are performed under reproducible and controlled conditions. The system offers substantial savings in terms of operator time, as well as improved analytical precision compared to manual methods.
Technical Specifications
| Dimensions (W x D x H) | 430 x 340 x 310 mm. Height with lid open is 600 mm |
| Weight | 18 kg |
| Power rating | 1860 W (230 VAC version) 1660 W (120 VAC version) |
| Internal fuses (CU) | F10A250V (230 VAC version) F15A125V (120 VAC version) |
| Sample size | 0.5-2 g |
| Measurement range | 0.1-100% fat in combination with extraction |
| Repeatability | Typically ±1% relative standard deviation for 10-100% fat content in combination with extraction |
| Capacity per batch | 12 samples simultaneously |
| Hydrolysis time | Typically 2 hours, or as stated in Application |
| Modes | 2 modes; Automatic/Manual |
| Programs | 1-9 |
| Installation requirements | |
| Voltage | 100-120 VAC 50/60Hz or 220-240 VAC 50/60Hz depending on ordered version |
| Water supply | Two water taps – for cooling and also for rinsing water. Alternatively one tap equipped with a T-connector. Deionized or distilled water is not needed. |
| Cooling and rinsing water | Water tap: 1 litre/min, <25 °C (pressure 50 to 500 kPa or 0.5 to 5 bar). Circulating Water Cooler: 1 litre/min, <25 °C (max backpressure 20 kPa or 0.2 bar) |
| Drain | One drain/sink for rinse, acid and cooling water |
| Ventilation | Fume hood |
| Use | Indoor |
| Altitude | Up to 2000 m |
| Temperature | 5-40 °C |
| Relative humidity | Maximum 80% |
| Transient overvoltage | Category II |
| Pollution degree | 2 |
| Protection Class | IP41 |
