Kjeltec 9 Analyser

Kjeltec 9 analyser provides fully automated Kjedahl analysis and is verified against official standards (AOAC, EPA, DIN, GB, and ISO) for simplified validation. Take advantage of fast turnaround time, improved data handling and less risk of human error for accurate results.

Kjeltec 9 Analyser

Overview

Value

Accurate results with fast turnaround time and easy data handling. Kjeltec 9 is safe, easy to operate and simple to run with minimal operator time and reduced risk of error.

Sample Type

Raw materials and finished products in food, feed and agriculture.

Parameters

Nitrogen, protein, ammonia.

Features

SAfE

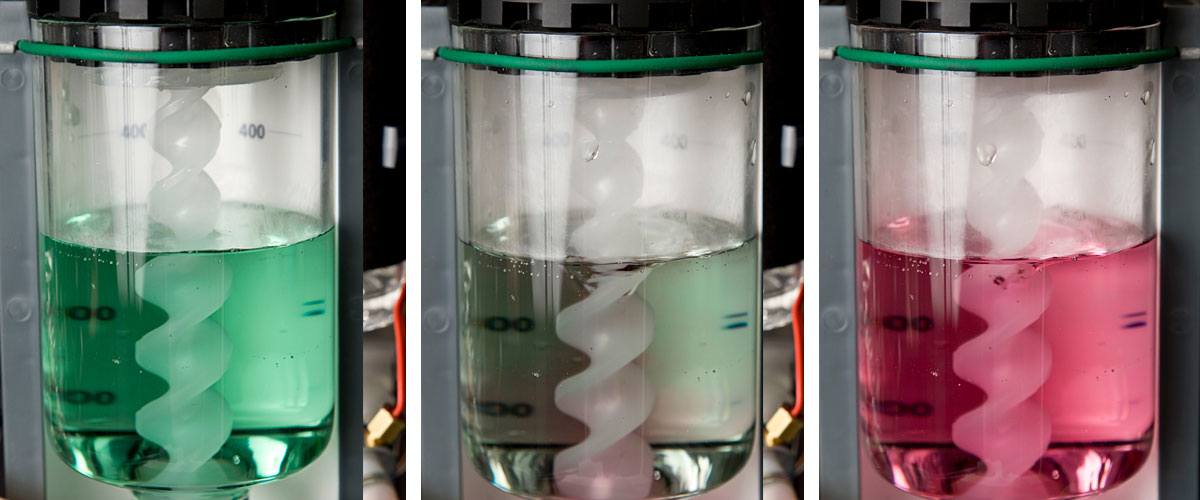

Unmatched Accuracy with Colorimetric Titration

Combined with unique technology such as automatic LED calibra­tion and automatic end-point colour, the classic colorimetric titration ensures that the results are always correct, and performance is stable over time. Automatic end point feature in combination with auto-mode ensures reliable and fast analysis. New titration controller guarantees that the correct end point is reached continuously throughout the distillation process.

Autosamplers
Safe and Easy Operations

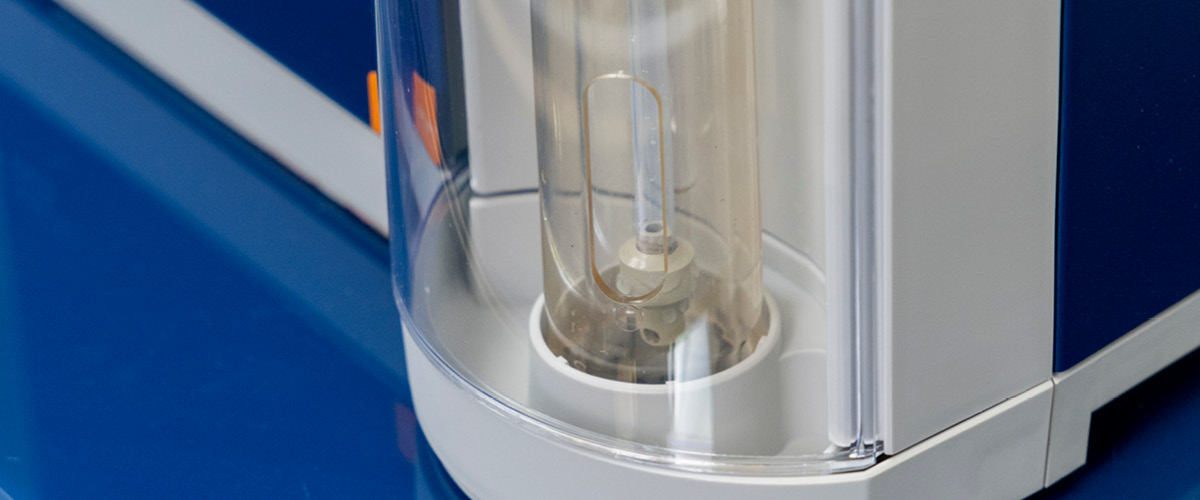

Reduce the training and staffing burden typically associated with managing chemical analysis operations and stop worrying about safety procedures. Kjeltec 9 is easy to operate and provides new levels of automation to save operator time and ensure safety. The user is fully protected by the unique safety door which must be closed with a tube in place before the unit will operate. Reduce the risk of chemical spillage with FOSS pioneered SAfE* mode, smart filling of reagents and minimal cleaning and maintenance for the operator.

Safety Features
Easy data handling with Alerts to avoid downtime

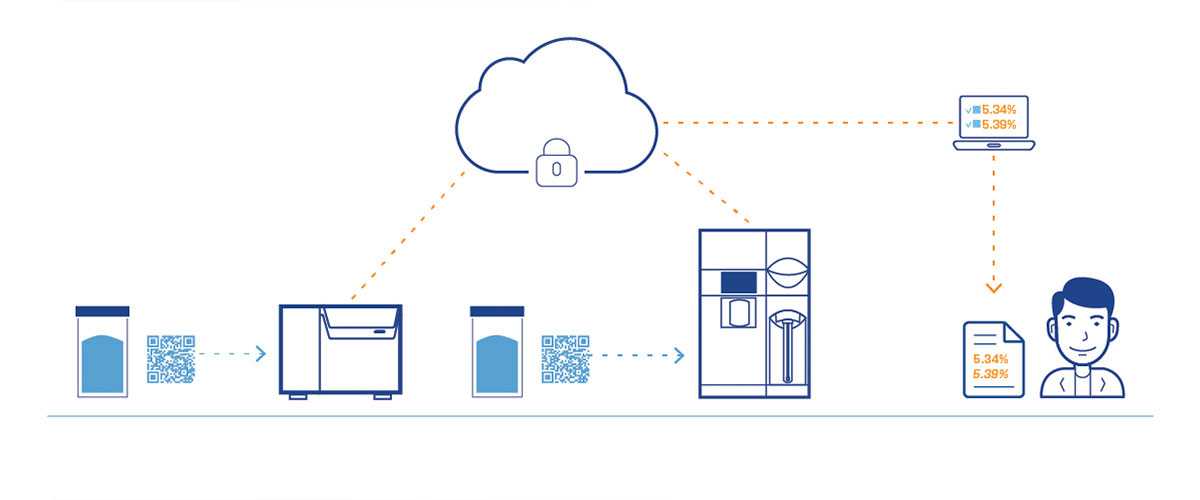

Using the optional Kjeltec Registration PC software, simply scan the sample ID on incoming samples to register and configure sample batches and know which test programme to run. Furthemore, Kjeltec 9 provides staff with ‘real time’ notification in case of errors of selected events such as an instrument or Autosampler error, via email or text message avoiding down time and letting staff do other tasks while analysis is running.

Unmatched Accuracy
New levels of integration with indirect methods

Kjeltec 9 is equipped with near infrared (NIR) and Fourier Transform Infrared (FTIR) to get an estimate on expected values and choose the reference method for your next step with confidence. By integrating these indirect methods, errors can be eliminated and costly re-runs avoided hence saving time and money

Case Story

“It really makes a difference in terms of turnaround time”

Learn how Nutreco Nederland achieved more consistent results with automated Kjeltec™, while saving time and labour.

Models

The Kjeltec™ series consists of four models: Kjeltec™ 8100, 8200 and 8400 and KT 200 Kjeltec™ with different levels of automation.

200 8100 8200 8400
Variable output steam generator  x  x  x
Water saving system  x  x  x
Cooling water flow control  x  x  x
Distillate temperature monitor  x  x  x
Polypropylene splash head x  x  x  x
Polypropylene tube emptying vessel x  x  x
Bellows pumps for reagent addition x  x  x  x
Automatic alkali addition x  x  x  x
Automatic dilution water addition  x  x  x
Automatic receiver solution addition  x  x
SAfE – Steam Addition for Equilibration x  x  x  x
Tube emptying/Waste collection  x  x  x
Reagent alarms  x  x  x
Removable drip tray x  x  x  x
Automatic safety door  x  x
Interlocked safety door  x  x  x
Removable safety door  x  x  x
Tube-in-place safety  x  x  x
Tube replacement sensor  x  x  x
Colorimetric titration system  Opt.  x
External titrator connection  Opt.  Opt.
Interchangeable burette  x
Titration bypass  x
Results calculation  x
Storage of raw data in instrument  40 batch
Data management PC software  x
Storage of raw data with PC software  Unltd
Ethernet connection for:
PC  x
Balance  x
Printer  x
Autosampler system 8420 or 8460  Opt.

Specification

Performance data at 230 V
Autosampler capacity Kjeltec™ 9 Autosampler 20, 1 rack with 20 Kjeldahl tubes 250 ml or 400 ml

Kjeltec™ 9 Autosampler 60, 3 racks with 20 Kjeldahl tubes 250 ml or 400 ml

Analysis time 3.5 minutes at 30 mg N (6.5 minutes at 200 mg N)
Distillation capacity

~ 40 ml/min

Measuring range 0.1 – 200 mg N
Reproducibility 1% RSD (including the digestion step)
Recovery > 99.5% at nitrogen levels between 1 – 200 mg N
Installation requirements
Power supply 200 – 240 V 50 – 60 Hz
Tolerable voltage variation ± 10 %
Power consumption 3 000 W
Water consumption 3 l/min at water temp of 30°C (Circulating Cooler recommended at >30°C) 1 l/min at water temp of 15°C
Weight net Kjeltec™ 9 Analyser

53kg

Autosampler 20

82kg

Autosampler 60

135kg

Dimensions: (W×D×H) 50 × 48 × 76 cm 69 × 76 × 100 cm 103 × 79,5 × 100 cm
