Overview
Value
All that you need for efficient batch analysis in one system including a filtration module and a shaking water bath for quantitative determination of dietary fibre.
Sample Type
Food and Food ingredients
Parameters
Total Dietary Fibre (TDF), Insoluble Dietary Fibre (IDF) and Soluble Dietary Fibre (SDF)
Features
Rapid dietary fibre analysis
The Fibertec™ 1023 is designed for rapid and rational determination of dietary fibre according to established enzymatic methods, including those approved by AOAC, AACC, NMKL and Asp.
A complete system

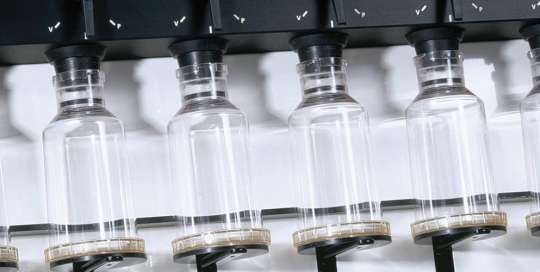

The system includes a filtration module and a shaking water bath for quantitative determination of dietary fibre in a variety of sample types. The filtration module filters and collects six sample solutions and the shaking water bath incubates 12 samples in each batch.

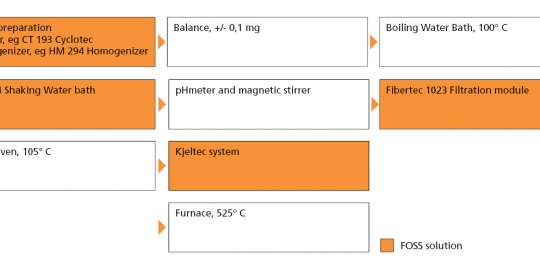

Equipment needed
For the determination of Dietary Fibre, the following equipment is needed and all items in the orange boxes can be ordered from FOSS.
See it in Action
Specification
| Performance data | ||
| Filtration Module | ||
| Filtration and dehydration capacity | 6 samples/batch. | |
| Filtration rate | 2 – 4 minutes/100 ml of digested solution, depending on sample type. | |
| Repeatability | SD <0.5% absolute | |
| Flask volume | 600 ml | |
| Accuracy | According to official methods | |

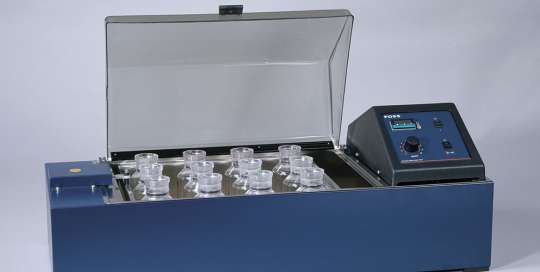

| WB 1024 Water Bath | ||
| Capacity | 12 flasks | |
| Temperature range | Ambient to 80 °C | |
| Temperature accuracy | ±0.1°C | |
| Shaking frequency | 0 – 150 strokes/minute | |
| Stroke length | 0 – 50 mm | |
| Installation requirements | ||
| Power supply | 210 – 230 V 50 – 60 Hz | |
| Power consumption | 8 W Filtration module 1500 W WB 1024 Water Bath | |
| Water supply | 2 pcs. tap water and sink for water aspirator. | |
| Weight net | FibertecTM 1023
24 kg |
WB 1024 Water Bath
24 kg |
| Dimensions (W×D×H) | 770 × 280 × 500 mm | 890 × 370 × 320 mm |
